11    BOM - BOM Builder

11.1       What is BOM Builder?

BOM Builder is a tool to let user to construct the Bill of Material BOM on their own. User can add component to BOM one by one or if a power supply has been initialized, all its component and corresponding details will be seamlessly transfer to BOM Builder. Every change on each component will be keep recorded. Revision of the overall BOM and each component will be generated automatically.


11.2       Customize column shown

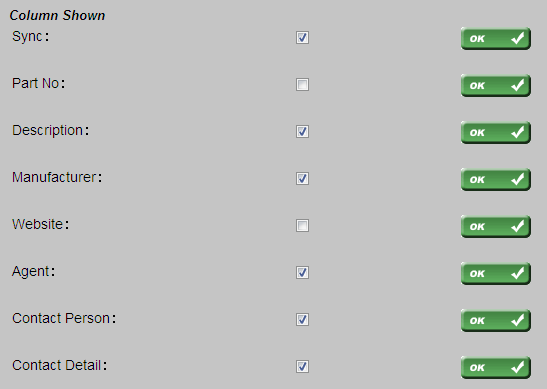

  1. Press “Preference” and you can see the following


  1. Tick any column you want to be shown in the BOM List



11.3       Preview Revision

Press the button “View Revision XXX”to preview the revision


11.4       Confirm Revision

Press the button “Confirm Revision XXX” when you want to release this revision


11.5       Export to Excel format


Press the button “Export to Excel format” to export the BOM to EXCEL format
