PowerEsim Manual - Add Parts

PowerEsim is a free web-based software providing power supply (SMPS) design, transformer design, magnetic design, loss analysis, thermal analysis, waveform analysis, MTBF analysis, BOM building, DVT analysis and optimization of power supply (SMPS).
Click to try PowerEsim (www.powerEsim.com)
  • What is Add Parts?
  • What types of parts can be added?
  • Adding parts from the component database
  • Define the losses of the added component
  • Create customize parts?
  • Define the losses of the added customize part
  • Define the material of the customize part
  • How to set the shape of the customize part?
  • How to set the size of the customize part?
  • How to edit the MTBF properties of a customized capacitor?
  • Customize a heat sink?
  • Changing the fin of a heat sink
  • Customize a PCB?
  • How to view or delete the added parts?
  • What is Add Parts? TopClick here to try PowerEsim now

    Add part is a general feature applied on all tools for user to add components for analysis. If a power supply is initialized, the added part will be appended into the original power supply BOM. If no power supply is initialized, the added part will be appended into an empty BOM. All analysis tools can share that BOM for analysis purpose.

    What types of parts can be added? TopClick here to try PowerEsim now

    List of component to be added
    User should first select what type of component to be added.

    Adding parts from the component database TopClick here to try PowerEsim now

    After selecting the type of component user wanted to add, user can click on "Add" to show the interface as below.

    select from component database

    1. Fill in the range of the searching criteria, press “Search,” all the component fulfill the criteria will be displayed at the searched components box and ready to be chosen.
    2. Select any one component from the searched components box
    3. Click “Select One”
    4. Press “Add Component” after selection

    Define the losses of the added component TopClick here to try PowerEsim now

    input loss of component
    All component added from database can be enter an power losses in the “Highlighted Losses” text box for thermal analysis purpose

    Create customize parts? TopClick here to try PowerEsim now

    select customized component

    1. Select "Customize component" from Component Type
    2. Press “Add” and you can see the page as below

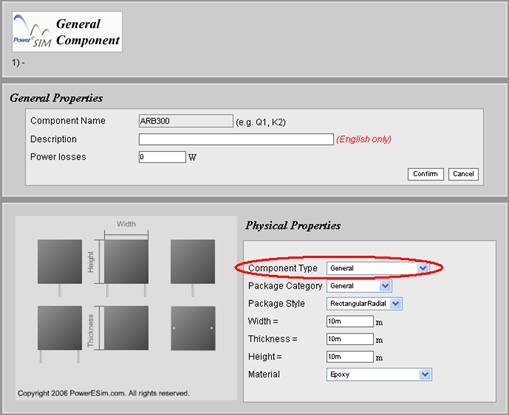

      Set component type
    3. Select which component you want to add from “Component Type”

    A lot of predefined package have been build to facility user. User can select the package style of the part from “Package style” combo box. The size and shape will be previewed at the left hand side. This shape will be as same as in Thermal Analyzer. No hand drawing is needed.

    Define the losses of the added customize part TopClick here to try PowerEsim now

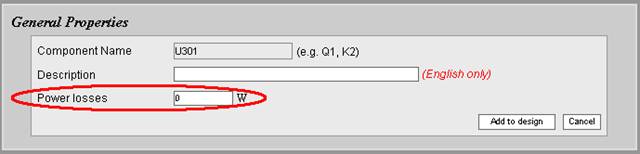

    input loss of customize component
    The losses of the customize part can be filled in the “Power Losses” text box.

    Define the material of the customize part TopClick here to try PowerEsim now

    material list
    User can select different material from the “Material” combo box.

    How to set the shape of the customize part? TopClick here to try PowerEsim now

    shape list
    User can select from the “Shape Type” combo box to have some choice of basic shape type.

    How to set the size of the customize part? TopClick here to try PowerEsim now

    Set dimension by width, thickness and height
    Fill in these 3 parameters to customize the size of the component.

    How to edit the MTBF properties of a customized capacitor? TopClick here to try PowerEsim now

    Set MTBF properties
    To add the capacitor, you can set the “Capacitor Type” at the bottom of the interface. This type is for the measurement in MTBF Analysis.

    Customize a heat sink? TopClick here to try PowerEsim now

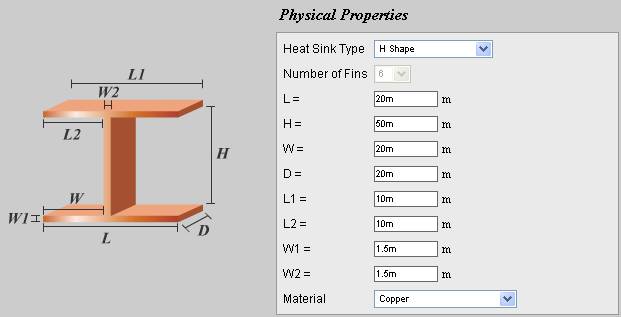

    Customize a heat sink
    Heat sink shape can be chosen at the “Heat Sink Type” combo box

    Changing the fin of a heat sink TopClick here to try PowerEsim now

    Set number of fins
    Select the number of fins at “Number of Fins” combo box

    Customize a PCB? TopClick here to try PowerEsim now

    Set PCB type
    Set the PCB Size and Material.

    How to view or delete the added parts? TopClick here to try PowerEsim now

    Click to delete added component
    After adding component to the design, the components will be shown in the "Add Part" interface. Click on the designator to view and edit components. Click on "Delete" to remove a component from the design.
