TIPS on PowerEsim
Bobbin Setting

In Magnetic Builder Advance Page, you can press the button "Bobbin Setting" which opens the "Advanced Bobbin Setting" page.



In this page, you can define the details of bobbin and split wall.

Besides, you can configure the winding window dimension by adjusting the settings include:

  • Inner Bobbin Width
  • Inner Bobbin Height
  • Ultimate Winding Layer Usage




  • What is New? Simulation & Design Counter: 8620069

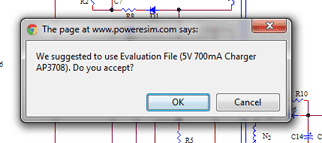

    New Smart Optimizer page, loss optimization has never been that easy before. Enhanced "Initial Design" with cross topologies and reference design features is now available.

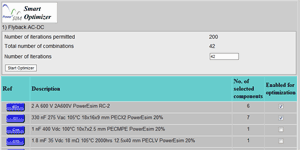

    Smart Optimizer


    Smart optimizer navigates or iterates combinations of circuit definition (by varying pre-defined parts) and returns a number of circuit combinations in descending order of their converter efficiencies.

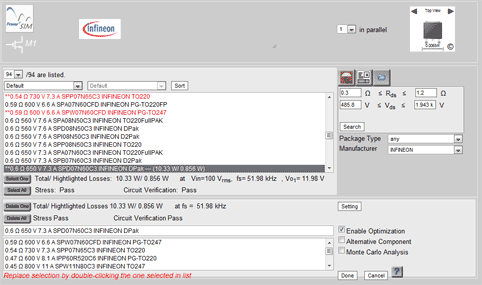

    User can click the checkboxes of any components to enable those components for optimization. Our system will automatically select some alternative components for optimizations. User can open the Component Finder Page by clicking the component buttons to view or change those alternative lists.

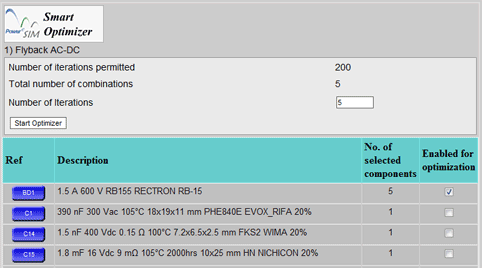

    After that, user can click the "Start Optimizer" button to start the optimization process. The number of iterations instructs smart optimizer which algorithm it should adopt for your request. Roughly speaking, more iterations provide better results and require longer processing time.
