Free On-line SMPS Design Tool
Issue 74, 6th April, 2011
TIPS on PowerEsim
Magnetic Builder

At Magnetic Builder Advanced Page, you can click the icon "Generate Drawing" which can redirect you to Generate Drawing page.

At this page, you can click the pin button next to the terminal of the transformer schematic, a window will pop up and show all possible pins that is available to be terminated. You can select pin at the bobbin or fly pins as defined above. Multi-pin is possible for one terminal too.

What is New? Simulation & Design Counter: 7883352
LED Driver Circuit is now available. Monte Carlo Analysis for transformers are now available.
Life & MTBF

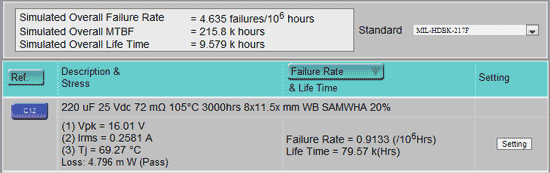

Life & MTBF analysis is a tool to estimate the MTBF and life time of any product. The "Simulated Overall Failure Rate" means how many time the system will fail under 1 million hours. The "Simulated Overall MTBF" means the average time between failure. The "Simulated Overall Life Time" means the life time of component having minimum life time.

Rather than showing overall failure rate, individual failure rate also been shown at the row of each component. User can also press the "setting" button to change the electrical setting of each component.
