Free On-line SMPS Design Tool
Issue 73, 1st March, 2011
TIPS on PowerEsim
Magnetic Builder

In Magnetic Builder Advanced Page, you can see a shortcut combo box "Bobbin".

Left, upper and lower bobbin thickness will be updated at once.

Besides, you can press "Bobbin Setting" button to open "Advanced Bobbin Setting Page". This page provides the features for the user to customize a bobbin for the core used. User can make split bobbin, define the bobbin walls thickness, the window usage, etc.

What is New? Simulation & Design Counter: 7587845
Copper Foil bifilar in alternative layer is now available. More operational details can be found in transformers quotation request.

Transient Analysis

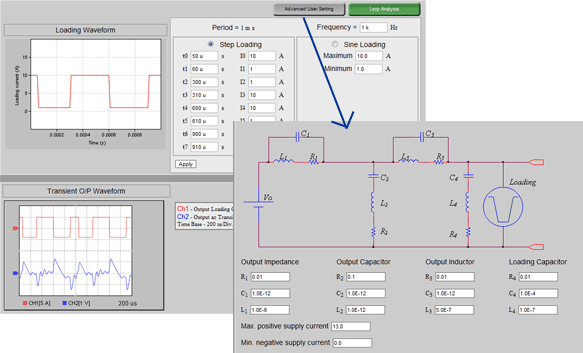

In Loop Analysis, non-linear load transient analysis can be done by pressing "Transient Analysis." The voltage waveform will be displayed according to the loading current shape and output impedance defined by user. After Click on "Advance User Setting" at Loading Setting, You can set the output impedance of a generic power supply by setting "Output Capacitor", "Output Inductor", "Loading Capacitor", "Max. positive supply current" and "Min. negative supply current" to customize the generic power supply characteristic.
