Free On-line SMPS Design Tool
Issue 72, 1st February, 2011
TIPS on PowerEsim
Magnetic Builder

In Magnetic Builder Advanced Page, you can request a quotation or sample. You can select different manufacturer and then press "Quotation/Sample" button.

You need to fill in your contact information. The corresponding manufacturer will contact you after pressing send button.

What is New? Simulation & Design Counter: 7355079
Large size ferrite cores from IFCores are now available. Monte Carlo Analysis about CC trip current is now available at Primary Feedback AC-DC.

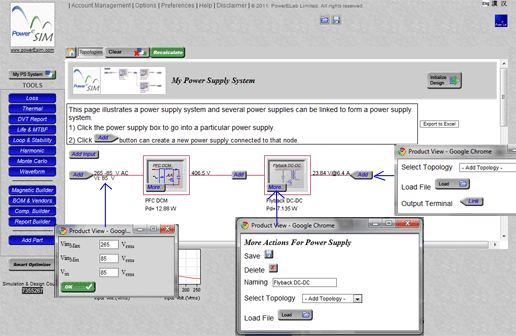

My Power Supply System

In PowerEsim, press to view the system in my power supply system view. It provides many functions includes:

  • update the input source conditions
  • load or create a power supply at any connection point
    Finally, press to initialize the whole system.
