Free On-line SMPS Design Tool
Issue 62, 30th March, 2010
TIPS on PowerEsim
Magnetic Builder

In Magnetic Builder, each winding layer is defined by its winding construction followed by layers of insulating tapes. User can change each winding construction at Advance Winding Construction page.

User can change the thickness, number of layers, type and manufacturer of insulating tape at the Tape Setting section.

What is New? Simulation & Design Counter: 4631660
LLC transfer function is now open to public. Topology Interleaved PFC DCM is now open to public.
Add Part
Add part is a general feature applied on all tools for user to add components for analysis. If a power supply is initialized, the added parts will be appended into the original power supply's BOM. If no power supply is initialized, the added parts will be appended into an empty BOM. All analysis tools can share that BOM for analysis purpose.

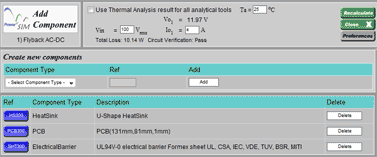

After selecting the type of component user wanted to add, user can click on "Add" and then use Component Finder Module to select components from database. User can enter the power loss for thermal analysis purpose.
