TIPS on PowerEsim
Magnetic Builder

In Magnetic Builder Advanced Page, user can define the location and size of the creepage tape of each winding.



User can choose the location of the creepage tape at the combo box Creepage Position:

  • End-to-end means creepage tape will be placed at both ends of the available layer
  • Tight means creepage tape will stick to the wire's ends rather than the layer's ends.




    • What is New? Simulation & Design Counter: 4312482
    Topology Interleaved PFC CCM is now open to public. Registrate Now! - Switching Power Supply Conference 2010 in Dongguan and Shanghai.

    DVT Report Module

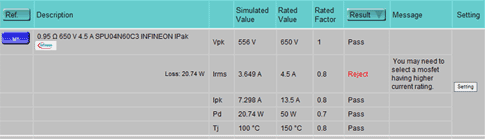

    Design Verification Test DVT Report Module shows all components' stress under user defined siutation. Reject, warning or pass will be commented on each component to ensure the design quality.
  • Reject means a fatal design error and had to be corrected.
  • Warning means a cut corner design, no instantaneously failure will happen.
  • Pass means the component is working safe.




    • User can press setting button at each component to set the details of each component. Instead of using simulated values, user can change to customized values for DVT simulation. In this setting page, user can also set the MTBF factors and other detail settings of different modules' simulation.
