Free On-line SMPS Design Tool
Issue 37, 4th March, 2008
TIPS on PowerEsim
Video Demo

PowerEsim provide a video demo to demonstrate how to use PowerEsim. Different version of video is available at download Page.

You can also view the video at YouTube.

What's New? Engineering Tasks Done: 999608
Magnetics Segments Kool Mu toroids are accessible by public. Infineon ICB1FL02(PFC Part) PWM Controller is accessible by public.

Bobbin Setting in Magnetic Builder

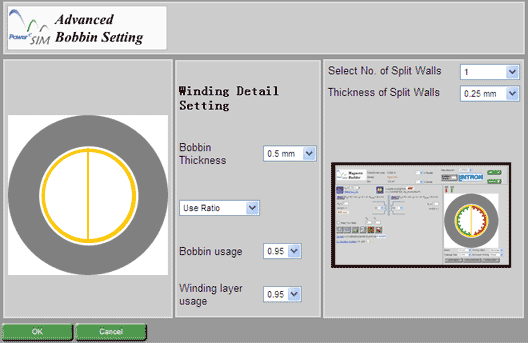

When you construct a toroid at , press button can open the Advanced Bobbin Setting page.

In this page, you can set the number of split wall and the split wall thickness. Beside, you can modify the bobbin thickness, bobbin usage and winding layer usage.

After each update, you can see the transformer preview (without wire) immediately. Finally, you can preview the whole transformer at the magnetic builder.
