Free On-line SMPS Design Tool
Issue 32, 20th September, 2007
http://www.powerEsim.com
TIPS on PowerEsim
Magnetic Builder



In General Drawing Page of Magnetic Builder, press can open select bobbin page.

You can select different type of bobbins as follows:

  • Horizontal
  • Vertical
  • Special Pin Vertical
  • Pin Free Rectangle
  • Pin Free Round.
  • What's New?
    New Magnetic Builder with expert system is available. Exhibition at Innovation Expo 2007 at HKCEC from 14 to 18 September 2007.

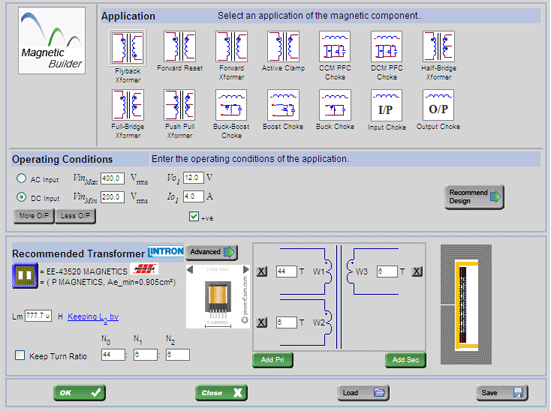

    Magnetic Builder Expert System

    In module, we provide a expert system that help users to build a suitable transformer.

    Firstly, select an application that fit your requirement. Then, enter the operating conditions and press button. Our expert system will give you a transformer that meet your requirement.

    You can modify the transformer by changing number of windings, turns and core used. You can also press button to handle the detail configuration of transformer.
