Magnetic Builder
In Magnetic Builder Page, Press
Keeping L
0
by
link can open the following window.
Allowing air gap checkbox represents whether the air gap is allowed.
Changing N
0
checkbox represents N
0
will be adjusted in order to keep the user expected L
0
value.
What's New?
Connecting Power Supply
is available.
New
Infineon
reference design
LCD 24 V 150 W with PFC
is available.

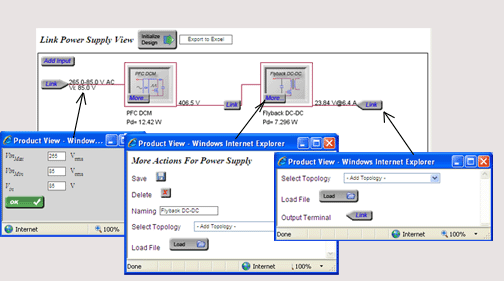

Link Power Supply View
In PowerEsim, press
to view the system in link power supply view. It provides many functions.
Press
button to connect power supply to current connection point.
You can load file or create new power supply.
You can also set the input source details.
After setting, press
to initialize the whole system.
The link power supply view can be exported to EXCEL format.
