Free On-line SMPS Design Tool
Issue 27, 31st May, 2007    http://www.powerEsim.com
TIPS on PowerEsim
Component Details
Mouse over the components at circuit can show the details at window status bar. You can see
  • Description
  • Loss
  • Stress
  • DVT Details
  • If you are using Internet Explorer 7.0, you need to set the following in your explorer.

    Enable Status Bar Scripting

  • Open Internet Explorer, click the "Tools" button, click "Internet Options", and then click the "Security" tab.
  • Click "Internet or Restricted sites", and then click the "Custom level" button.
  • Scroll down to "Allow status bar updates via script", select "Enable".
  • Click "OK" until you return to Internet Explorer.
  • What's New?

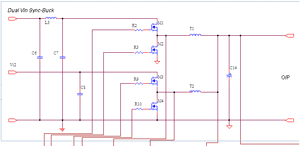

    Topology Dual Vin Sync-Buck is accessible by public. On-Semi NCP1396 LLC PWM Controller is accessible by public.

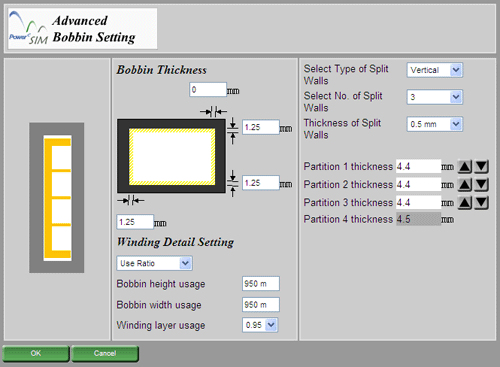

    Bobbin and Partition Setting in Magnetic Builder
    In , press to open the Advance Bobbin Setting page.
    In this page, you can set the follows:
  • Bobbin thickness
  • Bobbin and layer usage
  • Split wall type and thickness
  • Partition thickness
