Free On-line SMPS Design Tool
Issue 19, 6th October, 2006
Magnetic Builder

  • Extra Winding can be added by clicking or
  • The usage of this feature is recommended for non-operating winding only.
  • The user can change a particular winding to Faraday Shield.
  • Only extra windings can be changed to Faraday Shield.
  • What's New?
    On-Semi NCP1282 Active Clamp PWM Controller is accessible to public. Infineon ICE1PCS02 PFC CCM PWM Controller is accessible to public.
    Mouse Over the components at circuit can show the details at window status bar. Multi-level ungrouping is support at Thermal Analysis.

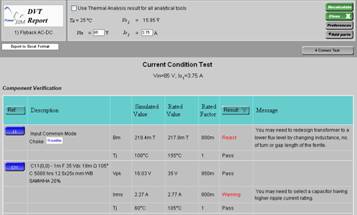

    DVT Report Modules
      Design Verification Test DVT Modules report all the component stress under user defined situation. Reject, warning or pass will be commended on each component to ensure the design quality.
  • Reject means a fatal design error and had to be corrected.
  • Warning means a cut corner design, no instantaneously fail will happen.
  • Pass means the component is working safe.
