PowerEsim Manual - Project Management

PowerEsim is a free web-based software providing power supply (SMPS) design, transformer design, magnetic design, loss analysis, thermal analysis, waveform analysis, MTBF analysis, BOM building, DVT analysis and optimization of power supply (SMPS).
Click to try PowerEsim (www.powerEsim.com)
  • Go To Project Management Page
  • Project Management Page
  • Add Power Supply to Project
  • Delete Power Supply from Project
  • Save Power Supply
  • Naming Power Supply
  • Project Summaries
  • Loss Analysis under project management status
  • DVT Report under project management status
  • MTBF Analysis under project management status
  • Input Harmonic under project management status
  • BOM & Vendor under project management status
  • Add Component under project management status
  • Select Power Supply
  • Switch between Power Supply
  • If you want to management more than one power supplies, Project Management Page can help you to manage the whole project.

    Go To Project Management PageTopClick here to try PowerEsim now

    click to project management page

    click to project management page

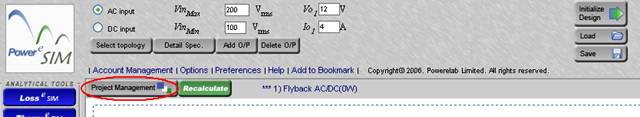

    You can go to Project management Page by clicking “Project Management” button

    Project Management PageTopClick here to try PowerEsim now

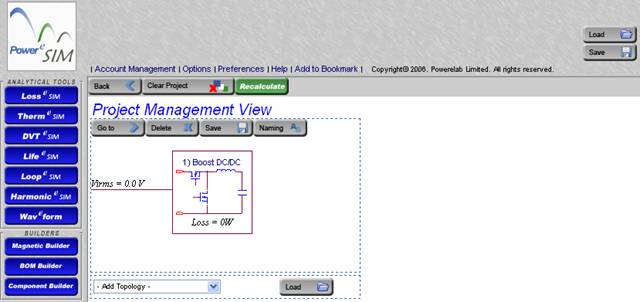

    project management view


    Add Power Supply to ProjectTopClick here to try PowerEsim now

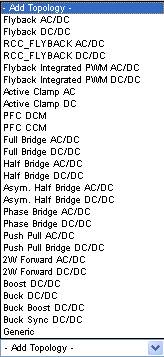

    add/load topologytopology list

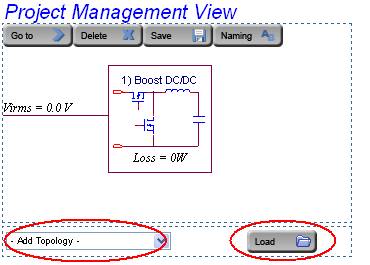

    There are two ways to add power supply

    .

    Delete Power Supply from ProjectTopClick here to try PowerEsim now

    delete power supply

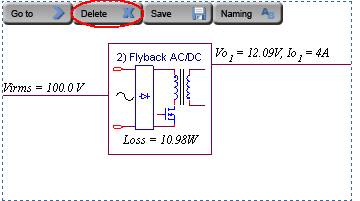

    Press “Delete” button can delete power supply from project

    Save Power SupplyTopClick here to try PowerEsim now

    save power supply

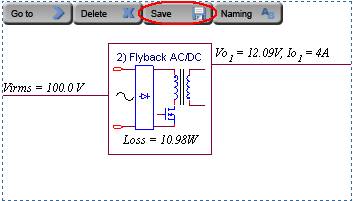

    Press “Save” button can save power supply separately

    Naming Power SupplyTopClick here to try PowerEsim now

    re-name power supply

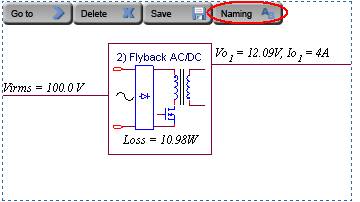

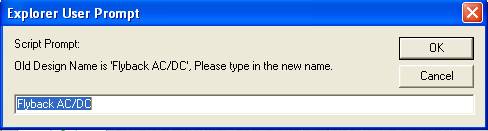

    Press “Naming” button will pop up a window and user can give the power supply a name

    input new name


    Project SummariesTopClick here to try PowerEsim now

    project summary page
    In project view, a project summary is shown at the analyzing tools

    Loss Analysis under project management statusTopClick here to try PowerEsim now

    loss analysis of project management
    It shows the total losses for whole project and the loss for each power supply.

    DVT Report under project management statusTopClick here to try PowerEsim now

    DVT report of project management

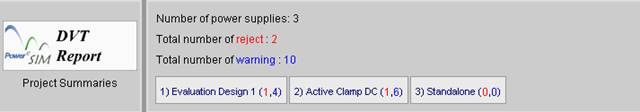

    It shows the number of reject and warning message for whole project and each power supply.

    MTBF Analysis under project management statusTopClick here to try PowerEsim now

    MTBF analysis of project management

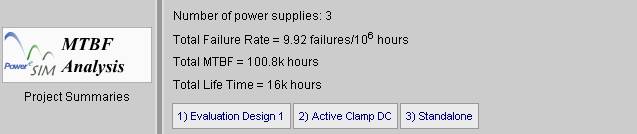

    It shows the total failure rate, MTBF and Life Time for whole project.


    Input Harmonic under project management statusTopClick here to try PowerEsim now

    input harmonic of project management
    It shows the simulated result for each power supply.

    BOM & Vendor under project management statusTopClick here to try PowerEsim now

    BOM of project management
    It shows the number of parts at BOM at whole project and each power supplies.

    Add Component under project management statusTopClick here to try PowerEsim now

    add component of project management
    It shows the number of components that added separately for whole project and each power supplies.


    Select Power SupplyTopClick here to try PowerEsim now

    click image to select power supply schematic view

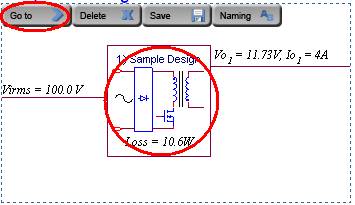

    Press “Go To” button or the circuit can select the power supply and switch to power supply view

    Switch between Power SupplyTopClick here to try PowerEsim now

    click to switch power supply

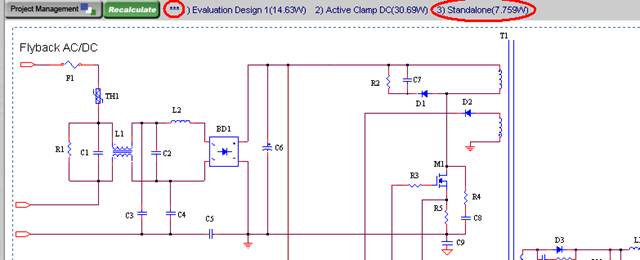

    In power supply view, you can view a project summary at the top. This project summary frame provides you a link. Press the link (the name of the power supply e.g. 3 Standalone) can switch to another power supply. Beside, the sign *** shows which is the current one.
