Free On-line SMPS Design Tool
Issue 59, 8th January, 2010
http://www.powerEsim.com
TIPS on PowerEsim
BOM & Vendor

BOM & Vendor is a tool to let user to construct the Bill of Material (BOM) on their own. User can either add components to BOM one by one, or if a power supply has been initialized, all its components and corresponding details will be seamlessly transferred to here.



User can customize the columns shown by clicking "Preference" and tick any interested columns to view in the BOM list.



What is New? Simulation & Design Counter: 3777290
Exhibition at Inno Design Tech Expo at HKCEC from 3 to 5 Dec 2009. Sampled Statistics about PowerEsim users are now available at Statistics Page.




Flux Band on a Transformer or Inductor

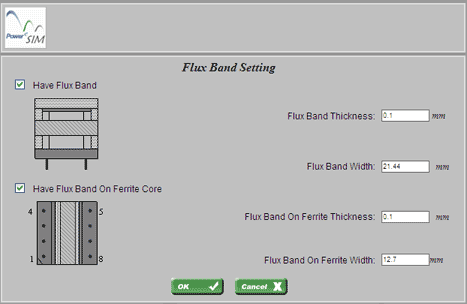

In Advanced Page of Magnetic Builder, user can preview and change the details of a transformer. Click the button "More..." besides any winding, a window which shows all the details for that winding will pop up. Click the "Flux Band Setting" will direct user to a Flux Band Setting page as shown below.

Two types of flux band are supported, which are flux band around the bobbin and flux band around the ferrite core. User can click the checkbox to choose the type and enter corresponding flux band dimensions.
