Magnetic Builder

Magnetic Builder User Manual is available at download section. Besides, you can see the on-line version by pressing the "Help" button at any Magnetic Builder Page.

With the help of this manual, you can understand the powerful of Magnetic Builder more easily.

What is New? Engineering Tasks Done: 1227092
Switching Frequency fs is now a design parameter in Magnetic Builder. Efficiency of the design is available at Loss Page.
BOM Builder

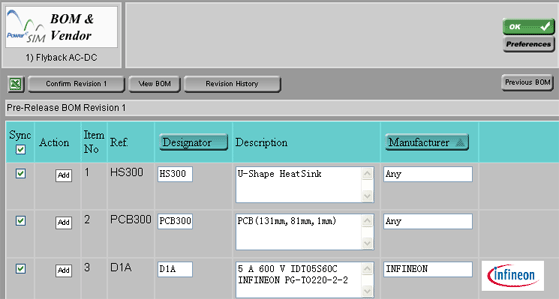

BOM Builder is a tool to let user to construct the Bill of Material BOM on their own. User can add component to BOM one by one by pressing "Add" button. Besides, if a power supply has been initialized, all its component and corresponding details will be seamlessly transfer to BOM Builder. Unclick the "Sync" checkbox can prevent overwrite when this component is being changed in schematics.

Moreover, every change on each component will be keep recorded. Revision of the overall BOM and each component will be generated automatically. You can view the revision history by pressing "Revision History" button. Finally, the BOM can be export to EXCEL format.
