Free On-line SMPS Design Tool
Issue 22, 4th January, 2007
TIPS on PowerEsim
Magnetic Builder

In Magnetic Builder, Winding Wizard run when the wire winding area is bigger than the allowable winding window area.

It has a list of allowable background actions that can do. Change the setting in Winding Wizard can let the users tune the performance of Winding Wizards.

Actions Options:

  • Choose Less Number of Parallel Wire
  • Choose Thinner Wire
  • Choose Bigger Core
  • Choose Less Number of Turn
  • Choose Thinner Creepage
  • What's New?
    Several Design Tips are avaliable at the top of modules page that can help PowerEsim users.

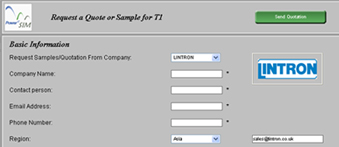

    Get transformer samples and quotation from LINTRON by clicking "Quotation/Samples" button.
    Component Setting

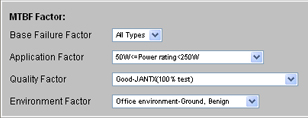

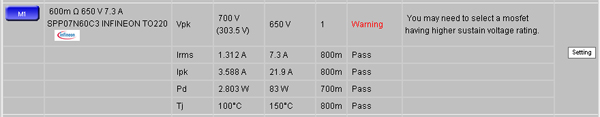

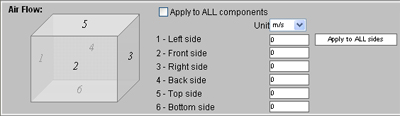

      Component Setting Page can set the details of each component. You can use the simulated value or customerized value for DVT Simulation. In this setting page, you can also set the MTBF factor and other details settings of different modules simulations.
