PowerEsim Manual - MTBF Analysis

PowerEsim is a free web-based software providing power supply (SMPS) design, transformer design, magnetic design, loss analysis, thermal analysis, waveform analysis, MTBF analysis, BOM building, DVT analysis and optimization of power supply (SMPS).
Click to try PowerEsim (www.powerEsim.com)
  • What is MTBF analysis?
  • Overall Failure Rate Result, MTBF and Life time
  • Where is the individual failure rate
  • Electrical setting of each part can be modified
  • How to recalculate MTBF?
  • What is MTBF analysis? TopClick here to try Online Life and MTBF tool now

    MTBF analysis is a tool to let user to add components and its corresponding stress one by one, then pressing a button, the life time and MTBF of the system will be known immediately. User can treat it as a standalone tool to estimate the MTBF and life time of any product. If a power supply has initialized, all the components and its corresponding stress in the power supply will be seamlessly transfer to the tool for simulation.

    Overall Failure Rate Result, MTBF and Life time TopClick here to try Online Life and MTBF tool now

    Overall Failure Rate Result, MTBF and Life time
    The "Simulated Overall Failure Rate" means how many time the system will fail under 1 million hours, "Simulated Overall MTBF" means the average time between failure. The "Simulated Overall Life Time" means the life time of component having minimum life time. E-Cap and opto-coupler are considered to have life time issue.

    Where is the individual failure rate TopClick here to try Online Life and MTBF tool now

    individual failure rate
    Rather than showing overall failure rate, individual failure rate also been shown at the row of each component.

    Electrical setting of each part can be modified TopClick here to try Online Life and MTBF tool now

    component's electrical setting button

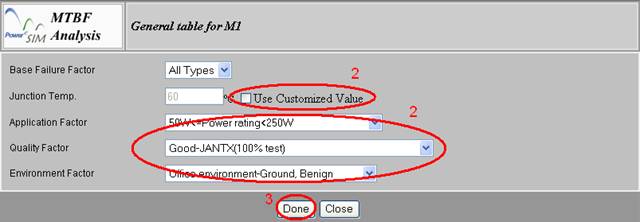

    1. Click the "Setting" button and then you can see the following table

    Component General Table

    1. Tick the checkbox or select the factor from the list
    2. Press "Done" when finish

    How to recalculate MTBF? TopClick here to try Online Life and MTBF tool now

    Click to Recalculate
    Press "Recalculate" after any change
