PowerEsim Manual - BOM Builder

PowerEsim is a free web-based software providing power supply (SMPS) design, transformer design, magnetic design, loss analysis, thermal analysis, waveform analysis, MTBF analysis, BOM building, DVT analysis and optimization of power supply (SMPS).
Click to try PowerEsim (www.powerEsim.com)
  • What is BOM Builder?
  • Customize column shown
  • Update Current Revision
  • Preview Revision
  • Confirm Revision
  • Export to Excel format
  • What is BOM Builder? TopClick here to try Online BOM builder now

    BOM Builder is a tool to let user to construct the Bill of Material BOM on their own. User can add component to BOM one by one or if a power supply has been initialized, all its component and corresponding details will be seamlessly transfer to BOM Builder. Every change on each component will be keep recorded. Revision of the overall BOM and each component will be generated automatically.

    Customize column shown TopClick here to try Online BOM builder now

    Click to Open Preference Page

    1. Press "Preference" and you can see the following

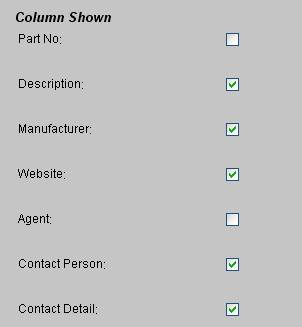

    Select Column Shown

    1. Tick any column you want to be shown in the BOM List

    Update Current Revision TopClick here to try Online BOM builder now

    Store
    Press "Store" after any change


    Preview Revision TopClick here to try Online BOM builder now

    Preview Revision
    Press the button "Preview Revision XX" to preview the revision

    Confirm Revision TopClick here to try Online BOM builder now

    Confirm Revision
    Press the button "Confirm this Revision" when you want to release this revision

    Export to Excel format TopClick here to try Online BOM builder now

    Export
    Press the button "Export to Excel format" to export the BOM to EXCEL format
